공기흡입 배관 및 부속자재
- 공기흡입 배관
- 부속자재

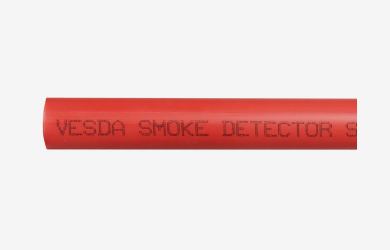

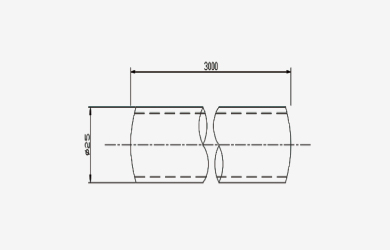

Sampling Pipe
공기흡입 배관
| Diameter(OD) | Diameter(ID) | Length | Weight | Color | Material |
|---|---|---|---|---|---|
| 25mm | 21mm | 3,000mm | 520g | Red | 강화난연성 PVC |

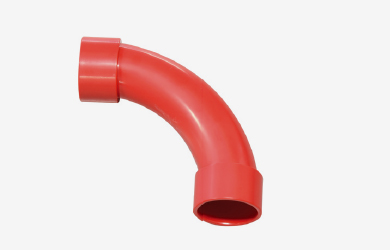

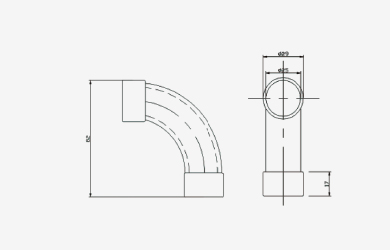

Elbow 90°
공기흡입 배관
| Diameter(OD) | Diameter(ID) | Length | Weight | Color | Material |
|---|---|---|---|---|---|
| 29mm | 25mm | - | 36g | Red | ABS |

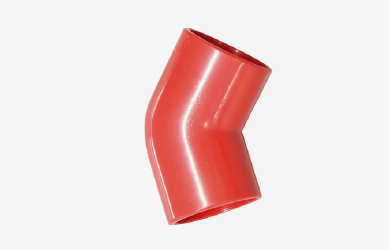

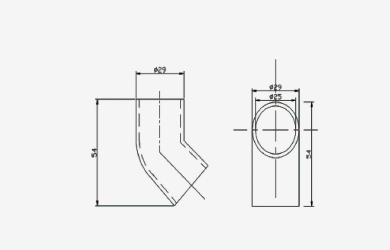

Elbow 45°
공기흡입 배관
| Diameter(OD) | Diameter(ID) | Length | Weight | Color | Material |
|---|---|---|---|---|---|
| 29mm | 25mm | - | 36g | Red | ABS |

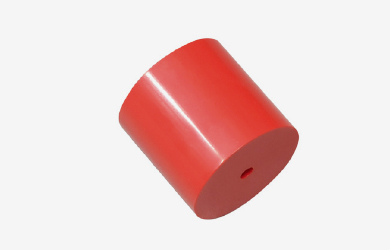

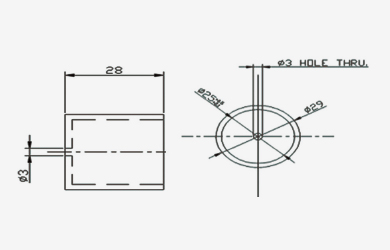

End Cap
공기흡입 배관
| Diameter(OD) | Diameter(ID) | Length | Weight | Color | Material |
|---|---|---|---|---|---|
| 29mm | 25mm | 28mm | 10g | Red | ABS |

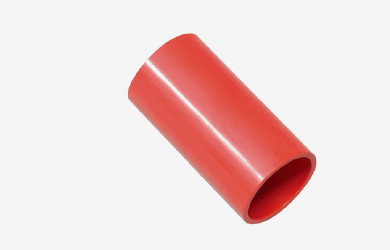

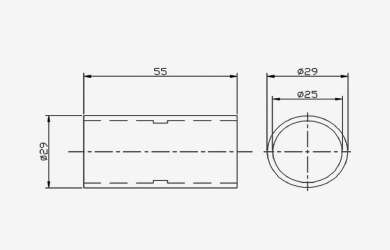

Socket
공기흡입 배관
| Diameter(OD) | Diameter(ID) | Length | Weight | Color | Material |
|---|---|---|---|---|---|
| 29mm | 25mm | 55mm | 20g 30g |
Red | ABS |
| 160mm |

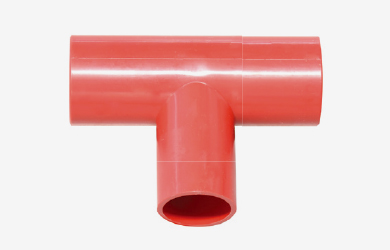

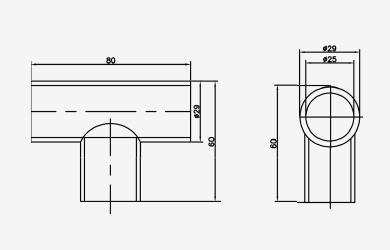

TEE
공기흡입 배관
| Diameter(OD) | Diameter(ID) | Length | Weight | Color | Material |
|---|---|---|---|---|---|
| - |

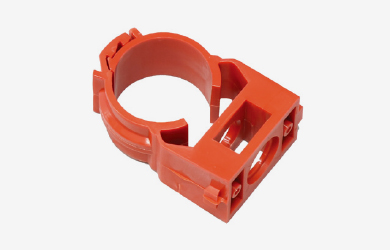

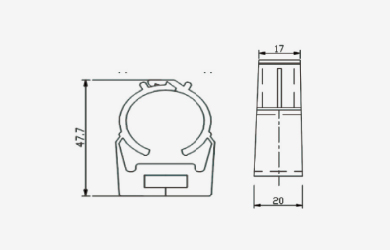

O Clip
부속자재
| Diameter(OD) | Diameter(ID) | Length | Weight | Color | Material |
|---|---|---|---|---|---|
| 30mm | 25mm | 48mm | 6g | Red | ABS |

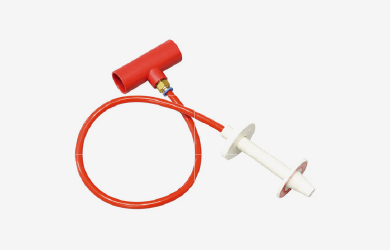

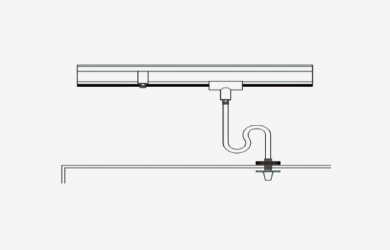

Capillary Set
부속자재
| Diameter(OD) | Diameter(ID) | Length | Weight | Color | Material |
|---|---|---|---|---|---|
| 29mm | 25mm | 최대 2m(Tube) |
- | - | ABS/ 우레탄(tube) |

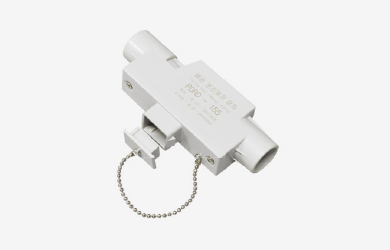

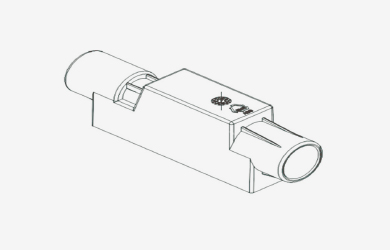

3w Suction Kit
부속자재
| Diameter(OD) | Diameter(ID) | Length | Weight | Color | Material |
|---|---|---|---|---|---|
| 30.5mm | 28mm | 192mm | 100g | Gray | ABS |

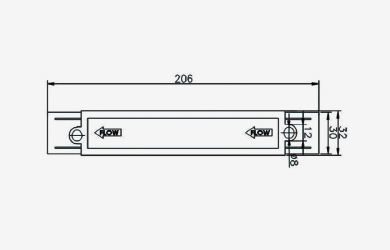

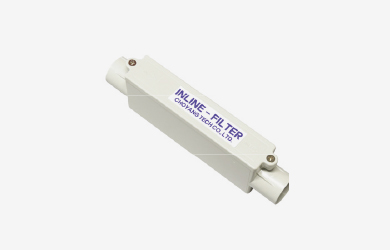

In-line Filter
부속자재
| Diameter(OD) | Diameter(ID) | Length | Weight | Color | Material |
|---|---|---|---|---|---|
| 30mm | 25mm | 206mm | - | Gray | PVC |
싸이클론호퍼
부속자재
| SIZE(mm) | Weight | Color | Material |
|---|---|---|---|
| 350(W) * 450(H) * 200(D) | - | Ivory | PVC |

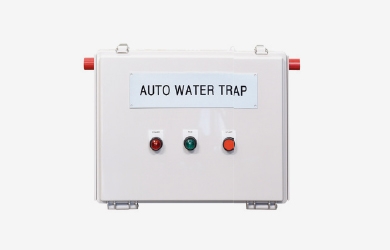

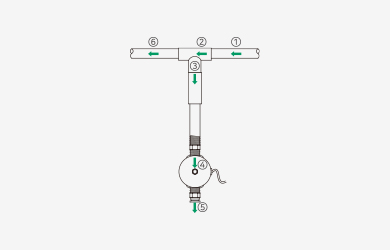

워터트랩
부속자재
| SIZE(mm) | Weight | Color | Material |
|---|---|---|---|
| 350(W) * 450(H) * 200(D) | - | Ivory | PVC |

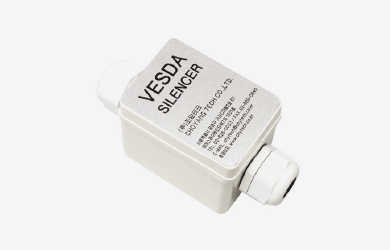

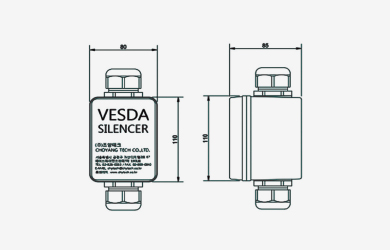

VESDA SILENCER
부속자재
| SIZE(mm) | Weight | Color | Material |
|---|---|---|---|
| 80(W)*110(183)(H)*85(D) | - | Light Gray | PVC |

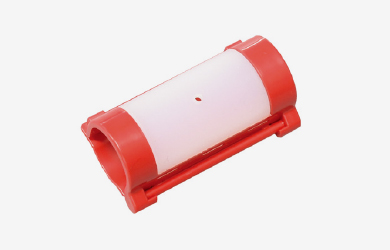

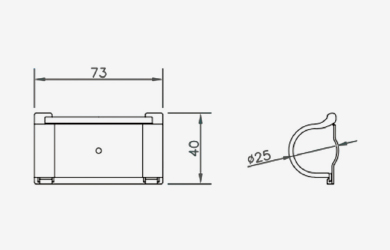

ANTI FREEZE HOLE SYSTEM
부속자재
| SIZE(mm) | Weight | Color | Material |
|---|---|---|---|
| 73(W) * 40(H) * Ø25 | - | 적색,반투명백색 | PVC +실리콘 |
